How to Install LED Whip Lights

Congratulations on getting new LED Whips! LED Whips have become an essential light when driving in deserts, rivers, dunes, or during night rides, making your off-road adventures safer and more enjoyable. They help you be seen from a distance and avoid accidents.

Due to the varied terrain in dunes, it can be challenging to see if there is a driver behind another dune. Norwayho cares about the safety of drivers.

Thank you for choosing Norwayho LED whips to be a part of your off-road experience.

This article, from Norwayho—established in 1997 and with rich experience in the off-road lighting business—will guide you on how to install LED whips in different situations.

Important: Proper installation of LED Whips requires a good understanding of automotive electronics, systems, and procedures. If you are not familiar with these, please have a professional do the installation.

Preparation

1.1 Ensure that the whip package is in good condition.

1.2 The most important thing to check is your vehicle's voltage. Generally, all ATV/UTV/RZR/Polaris/Boat/JEEP vehicles use DC 12V, which is a common voltage for these connections. If you are connecting with electric bikes or trucks, the LED whips will not work with 5V and could be damaged if exposed to more than 20V.

1.3 If the light doesn't turn on when connected to power, check if the wires are connected correctly. The red wire is positive; the black wire is negative. Reversed connections within 60 seconds are usually acceptable. Norwayho is happy to help you with the first mistake.

1.4 Before starting the installation, gather the required equipment and tools:

●Wiring harness

●Flathead screwdriver

●Zip ties

●Wrench

Now, let's get ready to install the LED whips.

Installing LED Whips Without a Mount

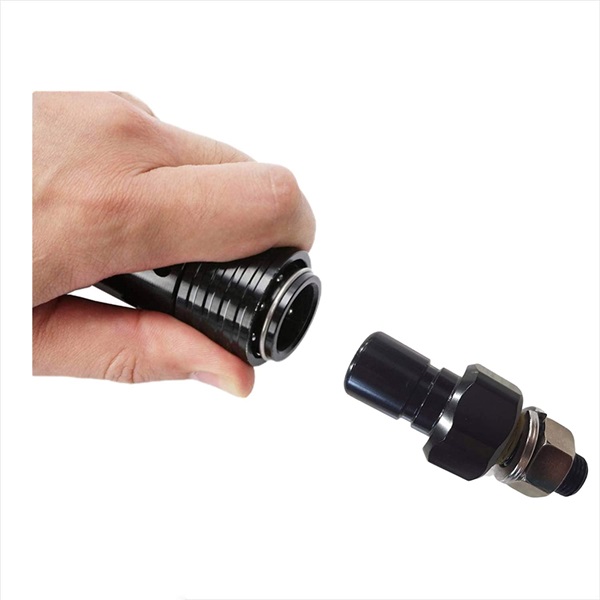

There are many different quick-release mount types available on the market. You can easily get a small base; for example, Norwayho's quick-release mount uses a push-and-pull mechanism. Do not pull it out directly.

Secure the mounting base onto the mounting surface using the included mounting bolt, nut, split washer, and washer.

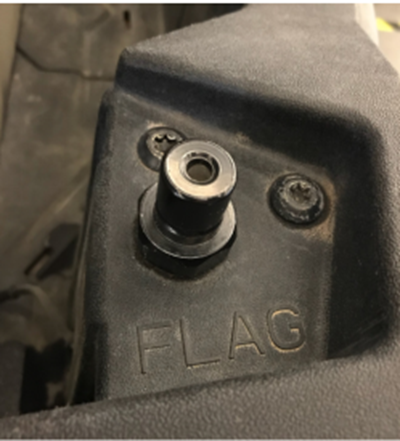

For the installation position, Norwayho recommends the car's rear; a steel plate is much better than a plastic one. When driving fast, a steel plate will keep the LED whips more stable.

The car's tube can also be tied tightly with LED whips. If you haven't tried this, we highly recommend it!

The car's front position is also becoming a popular spot for installation. However, since the LED brightness is over 60 watts and can be used both day and night, it may cause dizziness. The rear position is the number one recommended installation spot.

Installing LED Whips with a Clamp Mount

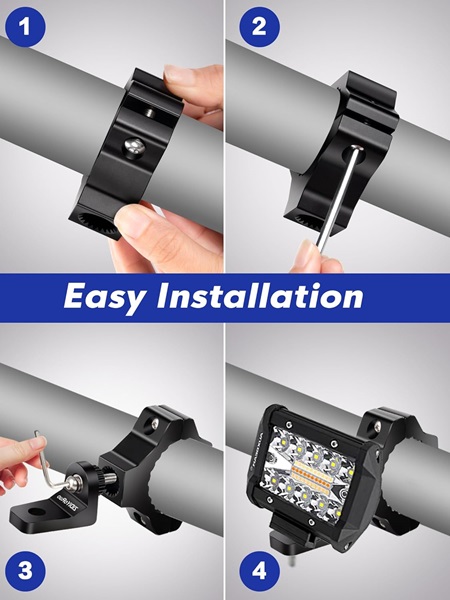

If you don't want to drill any holes in your car, Norwayho offers a full set of clamp mounts that can be attached to car tubes.

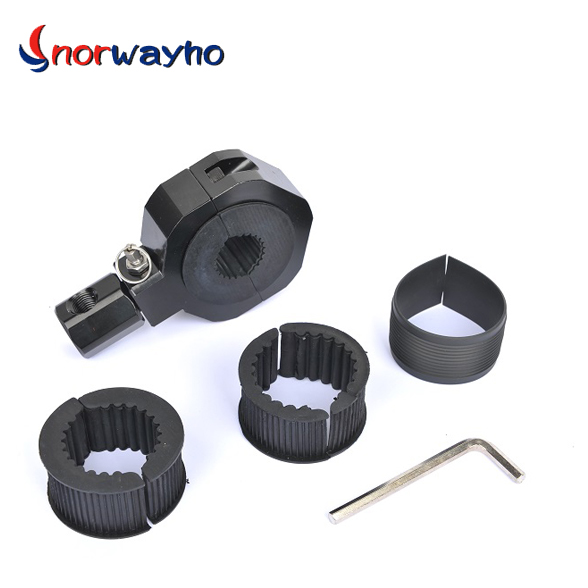

3.1 The most common clamp mounts are available in 1-inch, 1.5-inch, 1.75-inch, and 2-inch sizes. They can be used on all types of vehicles, both for adults and children. With replaceable inner rubber blocks, they can be installed on tubes perfectly, allowing 360° rotation and eliminating the need for drilling.

3.2 With the help of the inner rubber blocks, your car's tube will not be scratched between the tube and hardware.

3.3 The latest clamp set includes 1.75-inch and 2-inch sizes, suitable for all adult off-road vehicles. Norwayho is proud to say this is the best option for easy installation—not only for LED whips but also for LED bars, LED pod lights, etc. Our mounts use an international standard thread: 1/2”-20, allowing you to screw all kinds of products onto them.

Feel free to contact us if you need a customized thread, shape, or color. OEM is highly welcomed.

3.4 Norwayho offers FREE laser marking on the tube spare part. You can get a special mount with your logos, such as your name, a pattern, or a custom message. Contact us for more details!

Connecting the Power Wire Directly

Connecting whips to your car is straightforward. Norwayho provides 1.5 meters or 1.8 meters of wire, starting with matched pins and ending with red and black wires for positive and negative connections, respectively.

4.1 UTV wiring should be as waterproof as possible. We recommend using waterproof relays, terminals, and heat shrink tubing when wiring the whip.

4.2 When running wires, avoid moving parts, sharp edges, and hot surfaces.

4.3 Brush, branches, and rocks can easily damage wiring. Always protect your wiring with a wire loom and secure any hanging wires. Use zip ties to fasten the wires to your car for a neat connection.

Connecting with an Automotive Wiring Set

If you are dealing with messy wiring, Norwayho recommends a convenient automotive wiring set to help you organize your wiring layout and connections.

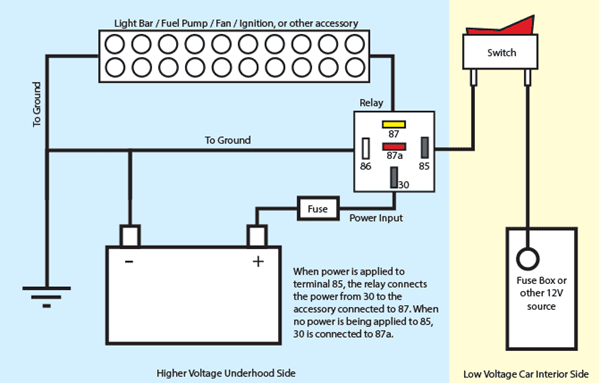

A complete wiring set includes: a relay, a switch, a fuse holder, and a connection cable.

5.1 About Relays:

Relays are mechanical devices that can connect or disconnect power to an accessory when they receive a low-voltage ‘signal’ from a switch. There are two main reasons why relays are used:

a. If a failure or short circuit occurs, the chances of an interior fire are significantly reduced.

b. It allows for the use of less heavy gauge wire. The longer the wire, the higher the resistance.

5.2 About Switches:

The most useful switch is a 12V 20A CE switch. Moreover, switch cover logos can be customized! Feel free to share your logo or idea, and Norwayho will offer FREE logo customization.

5.3 About Fuse Holders:

Fuse holders are required to integrate fuses that cannot be directly placed into conductive paths. They keep your product safe!

5.4 About Connection Cables:

We can provide cables of any length to meet different requirements. Norwayho uses the international standard 20AWG wire, which can support a 20A current.

Get a wiring set for your 12V electric car product. It can be connected with LED bars, LED whips, rock lights, fuel pumps, fans, audio systems, etc.

Testing the Whip Lights

Before reassembling your vehicle, make sure to test all the functions of the LED whip. Turn on your car and check the turn signals, reverse lights, and brakes. Don't forget to test the wireless remote too. Once everything is working properly, you can reassemble your vehicle if needed.

6.1 How to Test:

Try all the lighting modes and functions as explained in the manual.

Use the remote control or switch to change modes, colors, and patterns for wireless remote sets. If testing the Bluetooth set, download the BanlanX app from your mobile phone app store, register, and bind the unique serial number to ensure others can't control your whip color anymore.

6.2 Durability Check:

Gently move the whip lights to see if they work well without flickering or turning off.

If you encounter any problems or have questions while testing, feel free to contact our customer support team. Norwayho is here to help and ensure you have a great experience with our products.

Enjoy LED Whip Driving

Whether you're hitting the road with family, friends, or new acquaintances, we hope our Norwayho LED Whip adds an extra layer of safety and enjoyment to your journey. Every encounter we have in life is a rare and special opportunity—meeting someone is like finding one in three million. That's why we're truly grateful that you've chosen us to be a part of your adventures. Thank you for your trust in Norwayho. We wish you countless happy and safe miles ahead.

FAQ

What if I have a problem with my led whip lights?

A:All you have to do is ask Norwayho, send your question email to Norwayho!We'll give you the answer.
